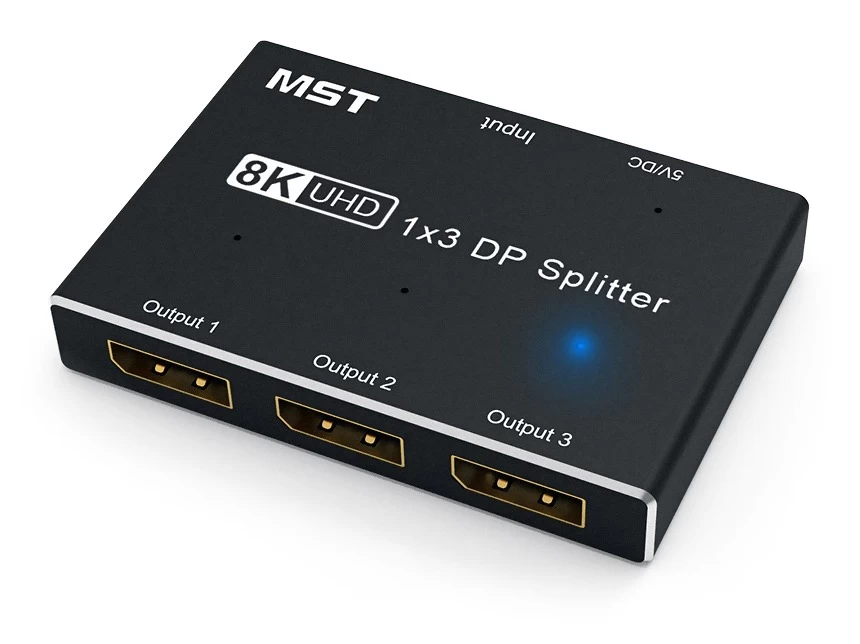

8K DisplayPort 3-Way Splitter Hub – MST Hub (Extend & Mirror)

More Monitors = More Fun!

This compact 3-port DisplayPort Splitter hub is intended for the beefiest of PCs and Gaming laptops. If your computer has a DP 1.4 socket and your monitor(s) can handle it, you can enjoy one display at 8K@30Hz or 4K@144Hz, two displays at 4K@60Hz, or three 4K@30Hz displays simultaneously. That’s crazy stuff! Lower combined resolutions, such as 1440p or 1080p will increase the available bandwidth and improve refresh rates. Eg: 2x 1080p@240Hz.

Enjoy your choice of a mirrored/cloned desktop, or an extended desktop by utilising the magic of Multi-Stream Transport (MST) on DisplayPort v1.4 hardware. This HBR3 (High Bit-rate 3) compatible MST Hub supports both video and audio for a truly immersive computer experience for resolution combinations under 32Gbps total bandwidth.

The MST Hub itself comes with a USB Cable for power (you can use any USB port on your computer, monitor or a dedicated USB Charger to power it), however you’ll need to get some DisplayPort (Male to Male) cables of your desired length to complete the set up.

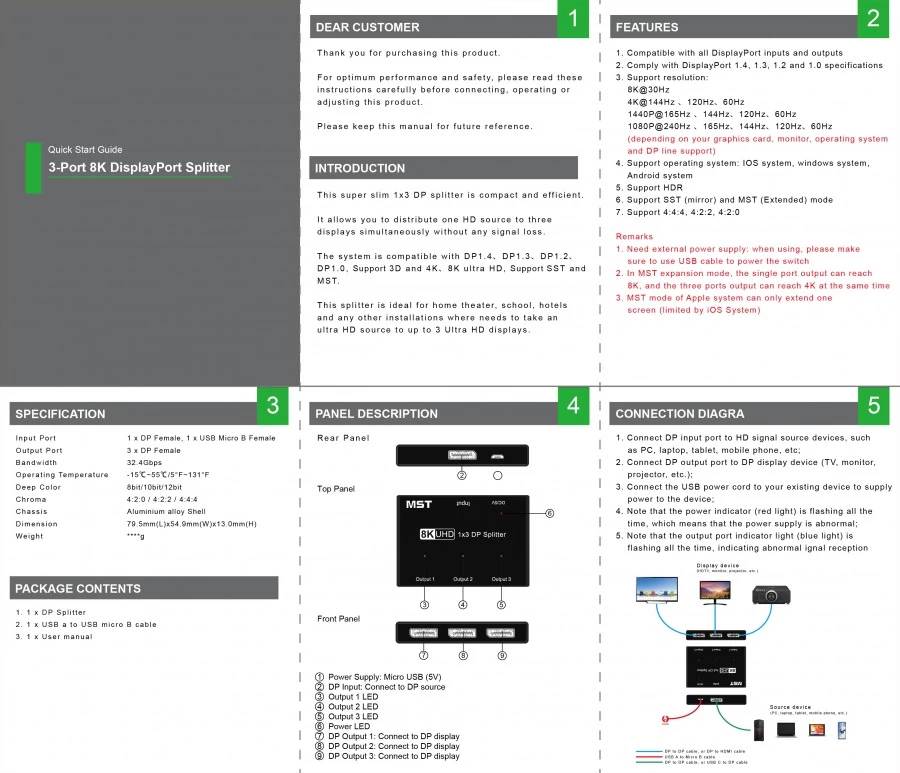

Setup Instructions

1. Connect the DisplayPort MST Hub to a DP++ compatible socket on your computer wiith a DisplayPort Cable
2. Connect the DisplayPort MST Hub to a powered USB port (a computer, TV or a wall socket USB charger will do)
3. Connect from each output on the MST Hub to your 1-3 displays, using either DP to HDMI, DP to Mini-DP, or a DP (Male to Male) Cable
4. Now your connection is setup, simply configure the displays via your computer’s display properties

Product Specifications:

• 5 year Cable Chick Warranty
• 3-Port DisplayPort 1.4 MST Hub (3-Way DisplayPort Splitter)

• Supports Mirroring and Extended Desktop Modes
• Supports a total resolution of 8K@30Hz  (Requires compatible DisplayPort 1.4 compatible hardware)
• Can be used with a Mini-DisplayPort to DisplayPort Adapter for compatibility on Mini-DP Sockets
• USB Powered (cable included)
• 32Gbps Data tranfer rate (HBR3)

• Full Support for HDCP v1.3 and DPCP (Display Port Content Protection)
• Full Support for HDCP v1.3 and DPCP (Display Port Content Protection)
• Audio formats up to 24bit / 192KHz supported
• Colour: Black Aluminium casing

*Hardware Note: Your existing video graphics adapter must meet the DisplayPort hardware specifications you intend to use for this splitter to perform all its functions. Older graphics cards or mobile graphics chipsets not capable of MST will not be compatible with this splitter.
