Avencore Carbon Series 5m DisplayPort Active Optical Cable (Supports Ultra HD 8K@60Hz)

You’re looking at Australia’s most advanced 8K DisplayPort Cable! Go beyond the limitations of traditional DisplayPort cabling with a hybrid fibre solution.

**PLEASE NOTE:  This cable is directional so only sends signal in one direction.  Please follow the ‘source’ and ‘display’ markings on each connector to ensure the cable is run in the right direction during installation**

Supporting all DisplayPort v1.4 features including MST, DSC, 3D, HDR and CEC as well as DP++, DPCP, HDCP, and up to 16-bit colour depth, the Avencore Carbon Series DisplayPort AOC solution is the perfect partner for all levels of display from at-home gaming through to professional graphic design and presentation AV.

The rapid surge to 4K standardisation for both home theatre and computer systems has left muddy waters when it comes to cable lengths, with uncertain limits on where Ultra HD resolutions can fail. But with Avencore’s Active Optical Cables, you can eliminate uncertainty and enjoy much greater freedom when installing displays.

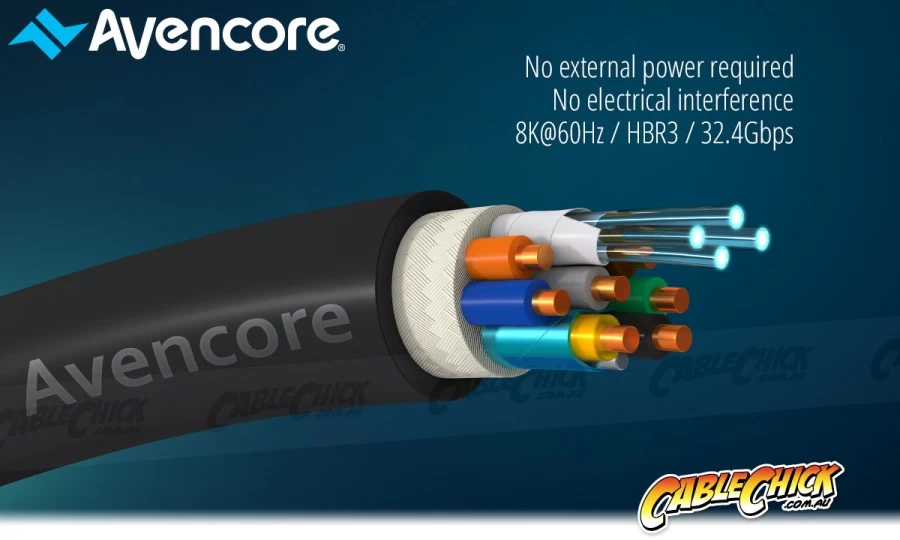

By using a set of OM3 fibre optic cores, these exceptional cables are impervious to electromagnetic interference and retain maximum bandwidth over all lengths – even up to 32.4 Gbps on 8K duties. Unlike other optical cables, the Carbon Series needs no external power of any kind and can work with all DisplayPort based systems without any special requirements.

With full DisplayPort v1.4 hardware compatibility, you’ll retain the features critical to any task over any length. High Resolution HDR imagery, Stereoscopic 3D playback, and High Refresh Rate gaming are no problem for the Carbon series DisplayPort AOC range.

Installation is a breeze too, with a 4.8mm cable diameter (25mm bend radius) and metal alloy plugs measuring 20x12x42mm, these cables are equally at home in tight spaces as they are in VR head-mounted displays. And with an extended 14mm DisplayPort plug and NO locking tabs, there’s nowhere they can’t go.

The Avencore Carbon Series DisplayPort Active Optical cable range is the ultimate in DP cable technology for the 4K era and beyond. If you’ve ever had to compromise on equipment placement due to limited cable lengths, the Avencore Carbon Series is the key to ultimate freedom without sacrificing picture quality.

Carbon Series 5m HDMI over Fibre Optical Cable Specifications

• Avencore 5 Year Replacement Warranty
• Latest DisplayPort v1.4 Compatibility!
• Fibre Optical Cores – no EMF or RFI
• Supports High-Speed 32.4 Gbps Bandwidth
• 5.4 Gbps x 4 Channels (R/G/B) + clock
• Supports MST, DSC, HDR, 3D, DP++ and more
• Supports DPCP & HDCP2.2 (High-Bandwidth Digital Content Protection)
• Suits high-bandwidth resolutions including 8K@60Hz & 4K@120Hz

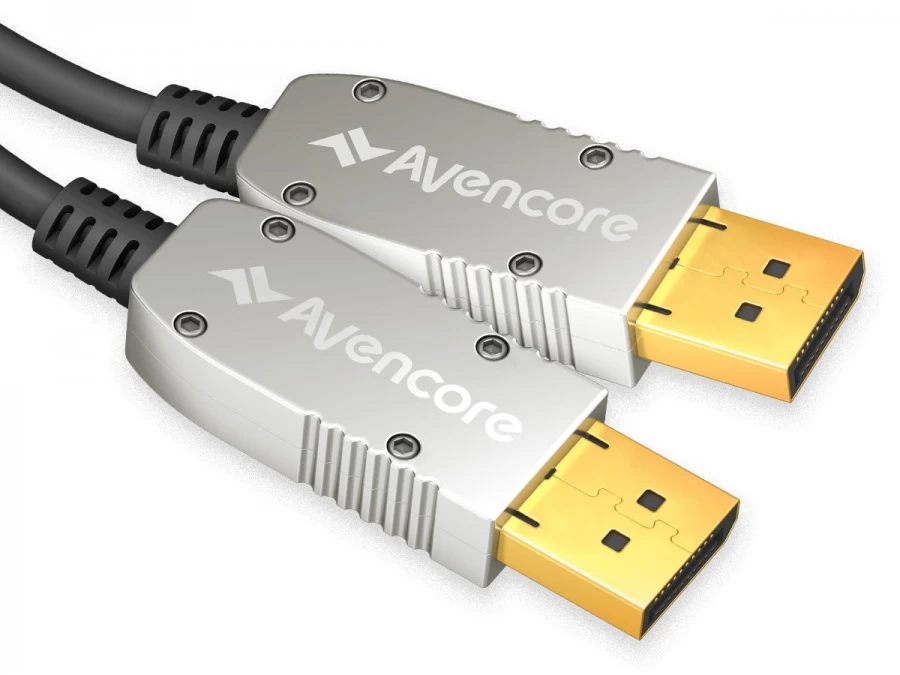

• Metal alloy plugs measure 20 x 12 x 42mm
• No external power needed! Plug and Play!
• 500mW (max) power consumption / 3.6V max input
• Directional Cable – Plugs are marked Source / Display
• Colour: Black Cable with Silver Connectors

Best used for

• Home, Office & Light Commercial Installations
• 2D content up to 8K@60Hz on compatible DPv1.4 hardware
• 2D content up to 4K@120Hz on compatible DPv1.3 hardware
• Youtube, Netflix & Blu-ray Ultra HD content
• High-interference environments
• Anywhere that copper cables are too short!
