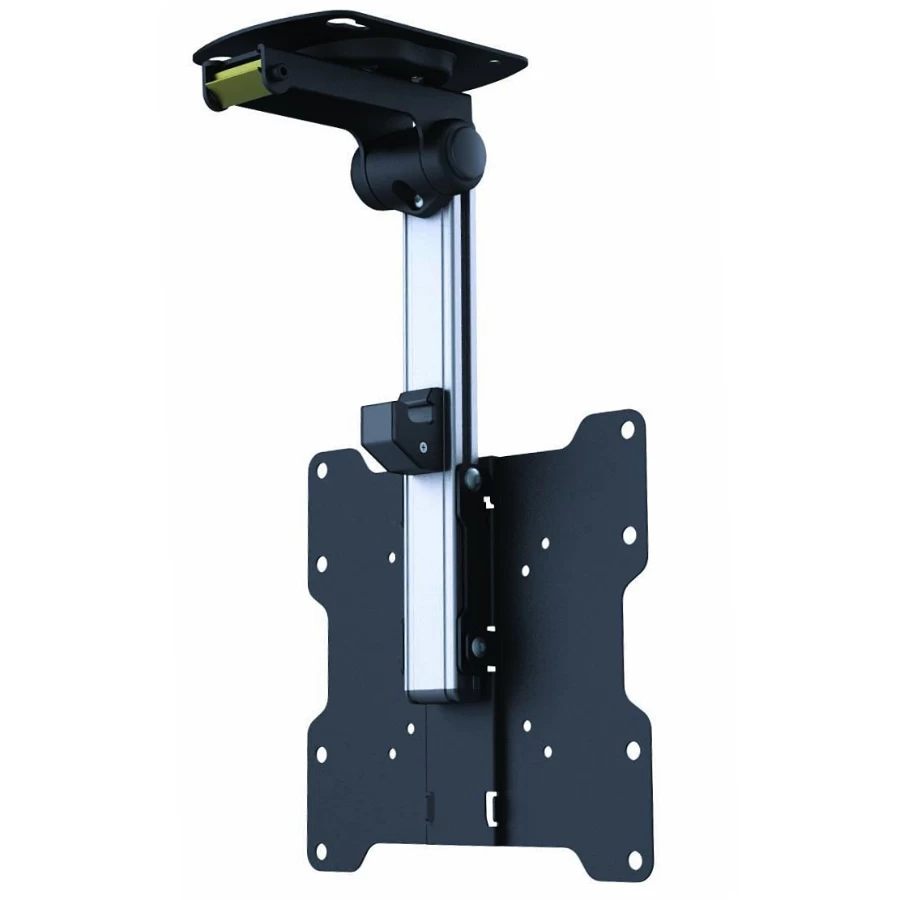

Fold-Away LCD TV Ceiling Mount (20kg Black)
Original price was: $119.95.$83.97Current price is: $83.97.
- Quality Meets Affordability
- Efficient and effective customer service, online.
- 100% environmentally friendly material
- Safe and Secure Payments, Always
Fold your TV out of the way when it’s not being used – perfect for motorhomes and campervans
With a clever locking mechanism and plenty of adjustments, this compact ceiling mount is perfect for screens up to 37″, weighing under 20Kg, using the VESA standards of 75×75, 100×100, 200×100 or 200×200.

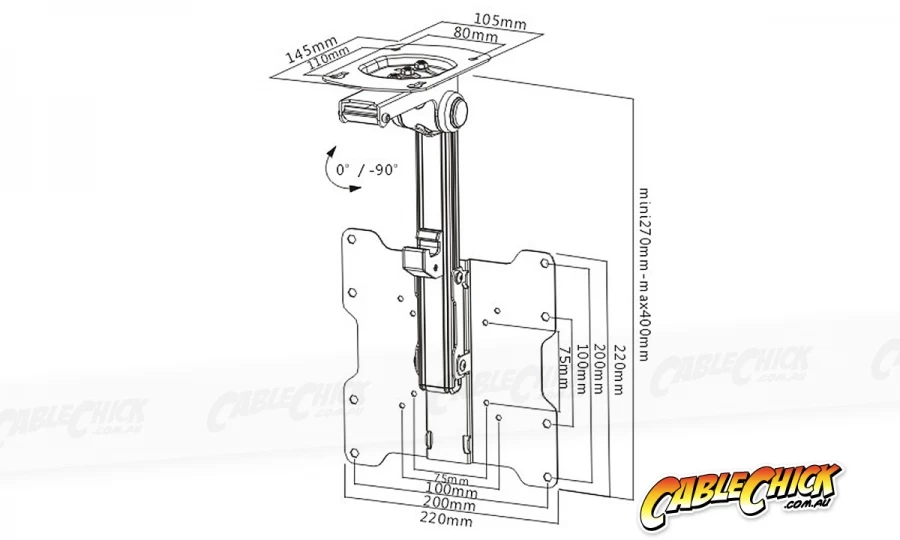

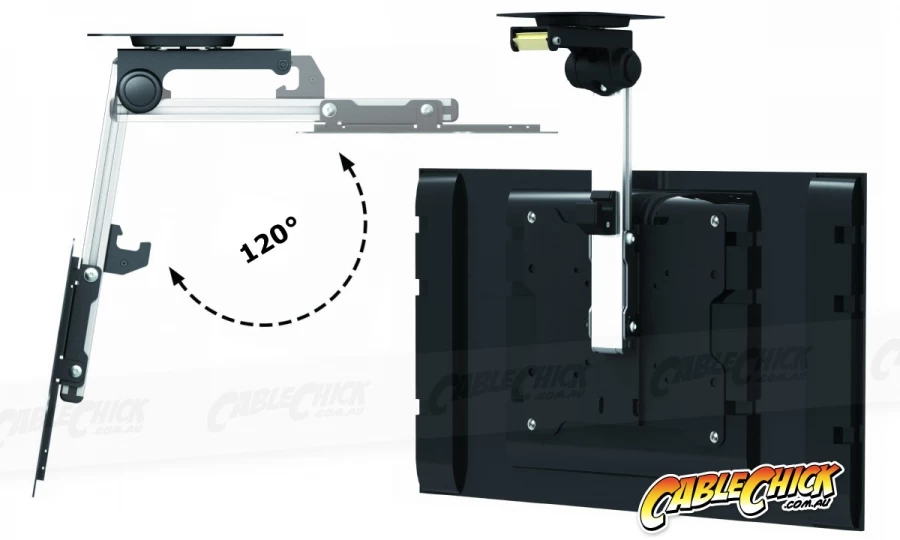

The first important feature is the swing-arm, which can rotate down through 120-degrees – making it perfect for pitched ceilings – and finds its level using gravity. The main hinge joint can be loosened or tightened to achieve the correct amount of resistance for your screen weight an application. The swing-arm is also a track for the mounting plate, with an extension range of 130mm, making the distance between the surface of the ceiling and the bottom of the mounting plate between 270mm and 400mm.
Next up is the plate which attaches to your ceiling. The plate measures only 165mm x 105mm, so it doesn’t need a lot of load-bearing space to attach, and it has a rotation ability of +/- 30° left and right to point the TV towards your preferred viewing position.
Finally, the washers, spacers and bolts included in the package should suit most major TV brands for easy installation. All in all, this is a very well put together mount which does exactly what it says on the tin. Please note that this mount is not lift-assisted, so disabled persons may have trouble with heavy screens if not prepared for their weight, and the latch mechanism is not lockable.
- Bracket Type: TV & Monitor Ceiling Mount
- Weight Rating: Up to 20kg
- Screen Size: 19″ to 37″
- Portrait/Landscape: Landscape only
- Min Bolt Hole Spacing: 75 x 75 mm (WxH)
- Max Bolt Hole Spacing: 200 x 200 mm (WxH)
- VESA Mounting Support: 75 x 75 to 200 x 200 (WxH)
- Dimensions: 320 x 220 x 85 mm (WxHxD) (when stowed)
- Wall Plate Dimensions: 165 x 105 mm (WxH)
- Height Clearance: TV Height + 60mm
- From ceiling to middle of bracket: 285mm
- Surface Types: Timber / Stud / Masonry
- Accessories: Parts bag & User Guide
- Colour: Black
- Additional Specifications: Mechanical Latch Mechanism
Please double check your clearances to ensure your TV will fit when stowed and extended!
Product Specifications
- Backed by Cable Chick’s 5 Year Warranty!
- Under Cabinet Style Fold-Away TV Ceiling Mount
- A clever fold-back clip design, to secure your screen when folded away
- Rating: 20kg – Recommended for 12″ to 37″ screens
- Extendable: Yes, 13cm of height range
- Rotation: Yes, up to 60° left/right
- Note: The bracket is held by gravity, and does not lock in its extended/open position
- Colour: Black
Please note: As with all wall or ceiling brackets it is essential that the mount is securely mounted to a stud or beam. If in doubt, please consider professional installation. Due to the size of this item, Express Delivery may not be available.
