The most cost effective solution to 4K HDMI extension!
Pumping Ultra High-Definition 4K/60 HDR video and audio over seventy metres can be an expensive and sometimes futile exercise. You have to consider your cabling quality, your run length, environmental interference and sometimes easily overlooked things like obstacles or tight bends. These hurdles are not easily overcome by HDMI, and even when they can be, you’re running into costly territory. Believe me; I’ve tried all kinds of crazy configurations to achieve long 4K runs, and very little has worked properly!

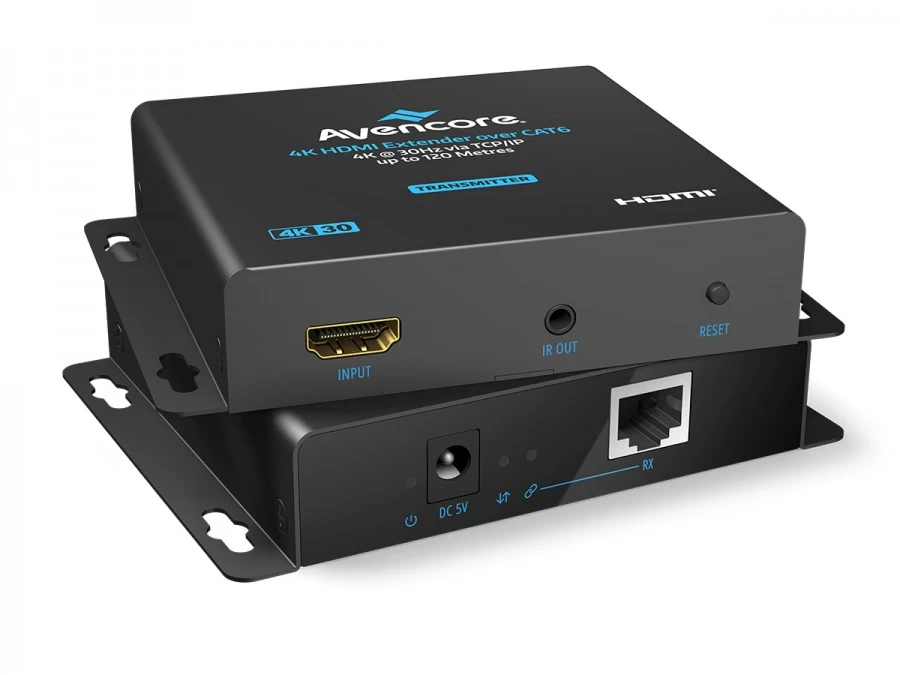

The HDMI Extender over CAT6 is the simple, faultless solution. I’ve brought it along to help out everybody else like me who sometimes (or always) needs to get their crystal-clear 4K multimedia extravaganzas to stretch from source to display even when they’re up to 70m apart. This HDMI Balun transmitter/receiver set hooks up to your equipment via short length HDMI cables, and they talk to each other via either one RJ45-terminated Cat6 Ethernet cable. The powered units are good for up to 70 metres depending on your signal type.
The added bonus comes when you realise how much easier it is to run shielded or unshielded Ethernet cable through your walls, floors and ceilings than HDMI cable – this transmitter/receiver set will save you time, money, and maybe even a little backache! The signal is clear and strong; as good as using a premium 5m HDMI cable directly plus it can also send Infrared signals for full remote control use!
Make no mistake; this unit was designed for delivering uncompressed 4K video and audio over long distances. Also built into the transmitter unit is a second HDMI port so you can run the same signal to a local TV or monitor at the same time as sending to the TV 70m away. You won’t find this kind of power or clarity at 70 metres anywhere else! Don’t forget to grab some HDMI and CAT6 cabling while you’re here!
Package Includes:
- 4K HDMI to CAT6 transmitter unit
- 4K CAT6 to HDMI receiver unit
- 1m IR transmitter to 3.5mm jack
- 1m IR receiver to 3.5mm jack
- DC power adapter (can be used on either end)
- Colour: Black
Features:
- 5 Year Cable Chick Warranty!
- Supported Resolutions up to 4K/60Hz YUV 4:4:4
- Up to 2m HDMI cables on either end supported (shorter is better)
- 2nd HDMI pass-through port on transmitter unit for local TV access
- Needs only a single CAT6 cable
- Supports High Dynamic Range (HDR) Video
- Supports 3D, Deep Colour, DDC* and HDCP 2.2 and 1.4
- Supports 12 bit per channel (36 bit) deep colour
- TMDS Clock can be clocked up to 600MHz
- Supports POC (power over cable) so the power supply can be used on either the TX or RX side
- Please note: this device may not be compatible with Foxtel / AppleTV / Austar devices.
- Please note: This device requires a direct connection and does not work via network switches/routers/etc
- Tiny units measure: 10cm x 8.8cm x 2.3cm and 200g each
- Requires: 2 x HDMI cables & 1 x CAT6 Ethernet cables (not included)
Cable Chick Tip: This package does not ship with cables. If you need some, we offer HDMI and CAT cable right here at Cable Chick. Check ’em out!
- Australia’s leading retailer of AV cables and tech accessories
- Flat-rate shipping nation wide
- Secure online shopping 24/7
- 14 years experience with 1000’s of health, government & education clients
- ALL products locally stocked for same-day dispatch
- Industry leading warranties up to 5-years on products
- A customer base of over 250k+ Australians who trust Cable Chick
- Proudly to be 100% Australian, employing all local staff
