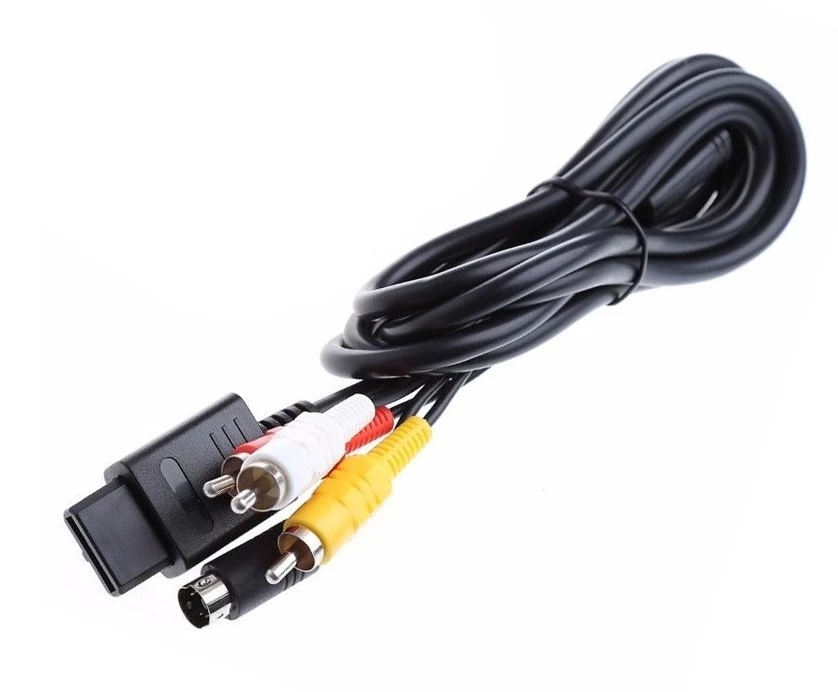

Nintendo SNES, N64 & GameCube Composite Video + S-Video AV Cable (Retro Gaming Cable)

Retro gaming cables are here at Cable Chick! Need a replacement AV cable for your retro Nintendo console? Well you’ve come to the right place!

What are Retro Gaming Cables?

Retro gaming cables are new cables, for our beloved classic game consoles. They have been specifically designed for the 8-bit and 16-bit video game systems (and let’s not forget 32/64-bit systems). These cables have been developed to either serve as quality replacements for the original AV cables which shipped with the game consoles, or offer superior AV output quality so you can enjoy these old consoles like never before!

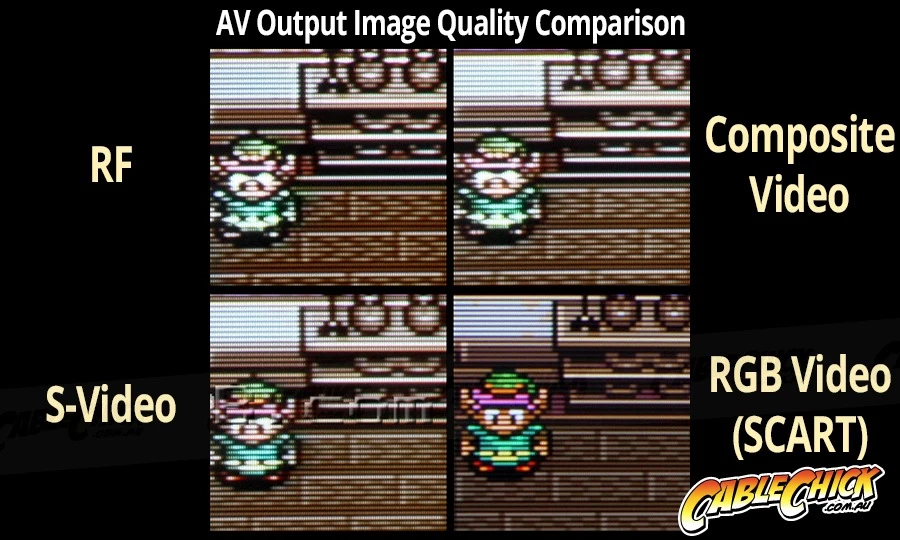

Cable Options for Nintendo’s SNES, N64 & GameCube Consoles

When it comes to hooking up your Sega game console to a TV, you have four main options with a MK1 console:

1. RF Output (only on the SNES): The RF output is the connection where you need to tune your TV to receive a signal from the game console. This is the oldest AV output standard, and as it sends all video and audio information through a single coaxial lead, the quality is also the poorest. This option is only available on the SNES console.
2. THIS CABLE > Composite Video: The next step up and noticeably better for video and audio, however the results are still not great due to the signal being carried through a single pin, however Nintendo consoles did manage to output a cleaner composite video signal than Sega’s consoles!
3. THIS CABLE > S-Video: S-Video is supported via the multi-AV output on Nintendo’s SNES, N64 (NTSC only for this cable) and GameCube consoles, and is a worthy step-up from composite video quality if you have a TV with an S-Video input, thanks to the signal being carried across multiple pins instead of just one. If your TV doesn’t support RGB SCART input, this will be your best option. Many CRT TVs supported S-Video input, while RGB SCART was rare to find.
4. RGB SCART: The SCART connector was an amazing analog standard used in Europe, and it made it’s way over to Australia on some higher end CRT televisions. With full separation of the video and audio signals, you will get the very best picture possible from an RGB SCART connection.

Retro Gaming on a modern HDMI TV or monitor

Although you could convert composite video to HDMI for use on a modern screen, a converter will not be able to improve on the poor image quality of the composite video standard. So if you have a RGB SCART compatible TV, our Nintendo RGB SCART Cables can be used with our SCART to HDMI Converter for 720p or 1080p upscaled digital audio and video output, and excellent output quality.

Keeping things simple

You may read all of this and think this is terribly complicated, however it’s more the case that we are just trying to cover all the bases. When it comes to the early Nintendo consoles, you just need to remember these things:

• The SNES, N64 and GameCube all shared a compatible Multi-AV output port.
• Nintendo’s Multi-AV port can output Composite Video, S-Video or RGB SCART video, plus audio.
• RGB SCART or S-Video outputs offer the best possible video output for your Nintendo consoles, if you have a SCART TV or TV with S-Video input.
• For N64 consoles running S-Video, this cable only works on NTSC region consoles. Conposite Video however works via this cable for PAL and NTSC region N64 consoles.

Features:

• 5 Year Cable Chick Warranty!
• Replacement AV Cable for the Super Nintendo, Nintendo 64 or GameCube Game consoles only
• Outputs Composite Video + Mono Audio for connection to most TVs
• Requirements: Compatible Nintendo Game Console + TV with an AV or S-Video Input
• A perfect replacement for your old/damaged Nintendo AV cables, or an upgrade from RF connections
• Designed for the original Nintendo Consoles, not the recent ‘Mini’ remakes
• Length: 1.8m (Approx)
• Colour: Black
