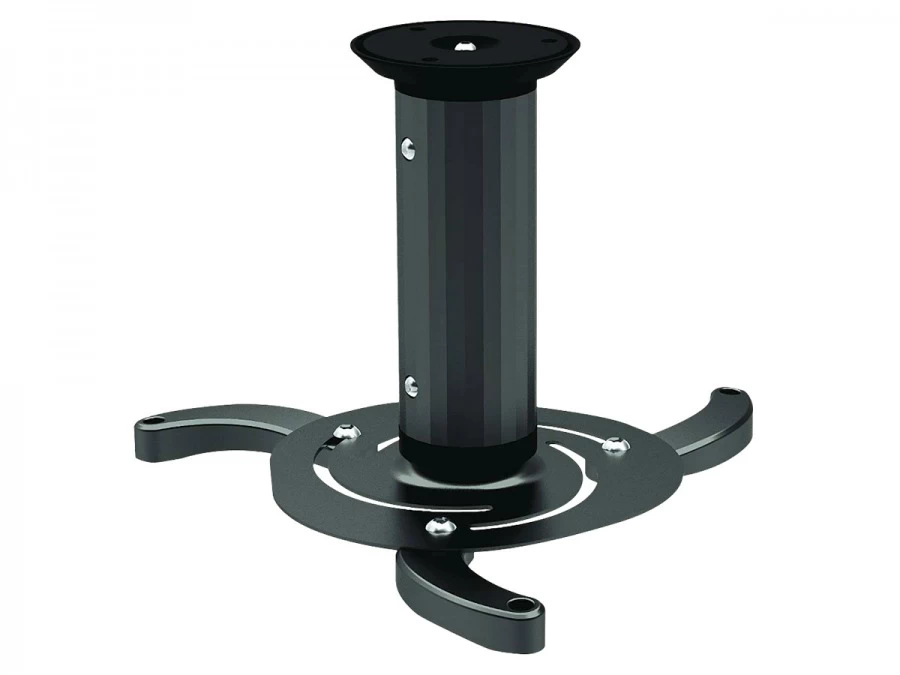

Universal 3-Point LCD & DLP Projector Ceiling Mount Bracket (Black)

Stylish DIY mounting for your 3-point projector!

Why buy a four-point mount when your projector only has three mounting holes? Sure, it’ll still do the same sort of job, but it will look a bit funny with the extra arm poking out all skewiff and lop-sided! What you really need is a purpose-made universal three-point ceiling mount that gives full range and flexibility for your projector. Who said a cheap projector bracket couldn’t be packed with features! 😉

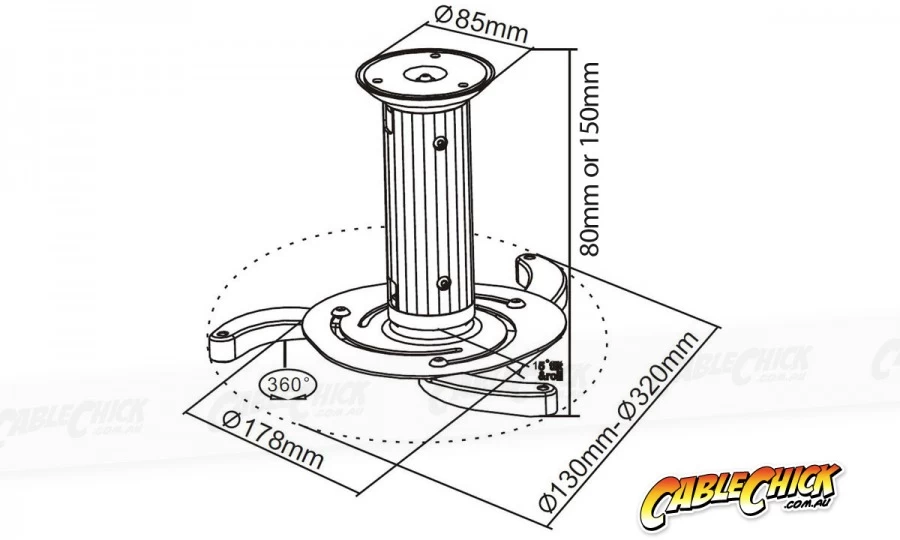

This compact kit gives you an 80mm and 150mm pole option, ending in a fully articulated swivel / pitch / roll / shift mounting plate with an arm range between 130mm and 320mm in diameter. The robust and heavy duty design is good for 10kg of projector, so remember to attach it to a load-bearing surface like a stud or beam.

Included is a full set of screws and spacers, plus easy push-in attachment for the projector mounting head so you can do the fiddly work on a bench instead of at the top of a ladder. Great for any projector under 10kg with a three-point mounting system with screw holes less than 320mm apart in diameter!

Compatability Check:

1. Measure the distance between the two most widely-spaced mounting holes on the base of your projector (specifications in the manual may not tell you). This can be tricky for three-point systems, but a dinner plate or similar round object can help guide you. This bracket suits projectors with mounting holes between 130mm and 320mm apart diagonally or in diameter. This mount can also be used with Four mounting point projectors if desired (simply mounting to just three points).
2. Check the weight of your projector, this bracket accepts up to 10kg

This projector mount includes universal style fittings designed to to suit most projector makes and models. Easy to install and offers a professional look with minimal DIY skill!

Please note: As with all wall and ceiling brackets, a timber stud or beam is essential for proper, safe mounting.

Features:

• 5 year Cable Chick Warranty
• Easy Assembly for Do-It-Yourself installations
• Full 360 degree rotation on the horizontal axis
• 80mm ot 150mm pole option
• 15° of vertical tilt (up/down)
• Lateral shift (left and right)
• 15° of roll (yaw)
• Weight limit: 10kg
• Push-in head attachment & easy detatchment for maintenance
• Suits Projectors with 3 mounting points (can be used on 4 mounting point projectors also)
• Includes fittings and accessories for most major brands and installations
• Colour: Black with silver accents
