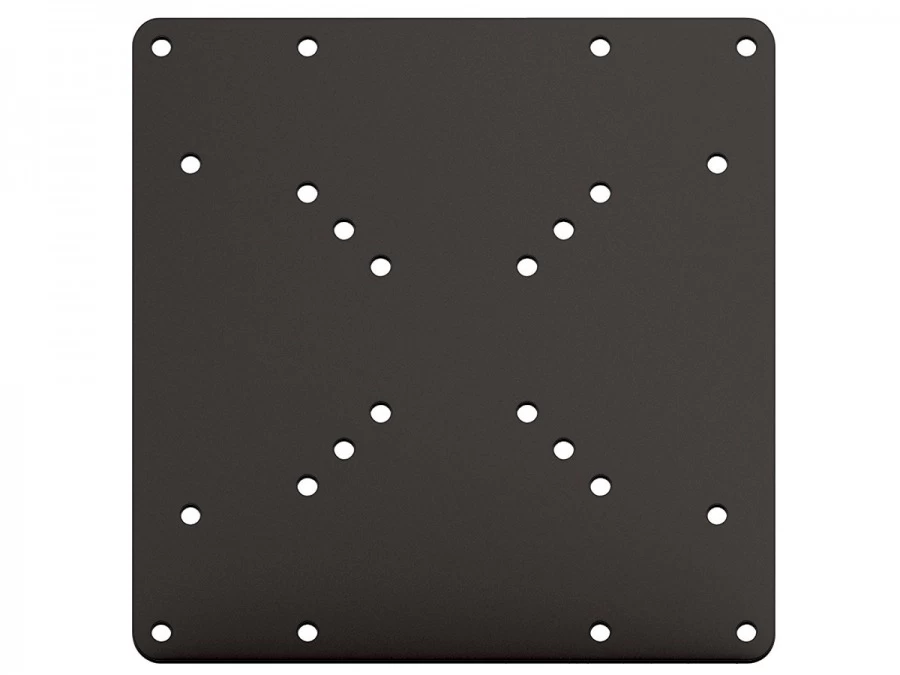

Universal VESA Mount Adapter Plate (VESA 50, 75, 100 & 200)

Expand the capacity and versatility of your current mount with this VESA Adapter plate.

Don’t throw out your old desk mount just because you’ve updated your screen! With a handy adapter plate, you can keep your existing TV or Monitor mount and ensure a safe and secure attachment to your shiny new display.

Generally, you’ll want to upgrade from a smaller mounting plate to a larger one, and it couldn’t be easier with the included parts bag. The plate can go from VESA50, VESA75 or VESA100 and step up to accommodate a VESA200, VESA180 or 200x100mm screen mount.

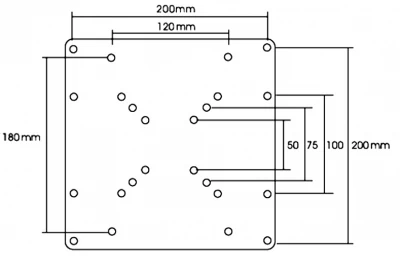

Back the other way is only a little more fiddly – you’ll need some spacers to give you complete access, and the spacers included may not be large enough, so you may need a trip to the hardware store if converting down. Just check our handy diagram above for the complete list of mounting hole patterns available!

Note for converting down: Most brackets & TVs have a perfectly flat mounting plate, so converting down to a smaller size may block the bolt holes you intend to use. While this is not a problem for most universal brackets, please ensure that your current bracket will not block the holes you need, or that you can use spacers to provide a buffer for access.

Requirements:

1. This adapter plate attaches to an existing mount or bracket with mounting holes at 50mm square, 75mm square, 100mm square, or 200mm square.
2. This adapter can accommodate screens with VESA standard mounting holes at 50mm square, 75mm square, 100mm square, or 200mm. Also supports 200×100 and 120×180.
3. Converts up or down to suit your needs (see note above for converting down).

Features:

• 5 Year Cable Chick Warranty
• Suits televisions and monitors with VESA mounting holes up to 200mm square
• Suits Brackets with VESA or Universal mounting holes
• Parts bag included
• Plate dimensions: 220mm (W) x 220mm (H)
• Weight rating: 30kg or the same as your current mount (whichever is lowest)
• Bolt Hole Sizes:
  • 50, 75 & 100 spacings: 6mm diameter max (M6)
  • 200 spacings: 8mm diameter max (M8)
• Solid steel construction
• Colour: Black
