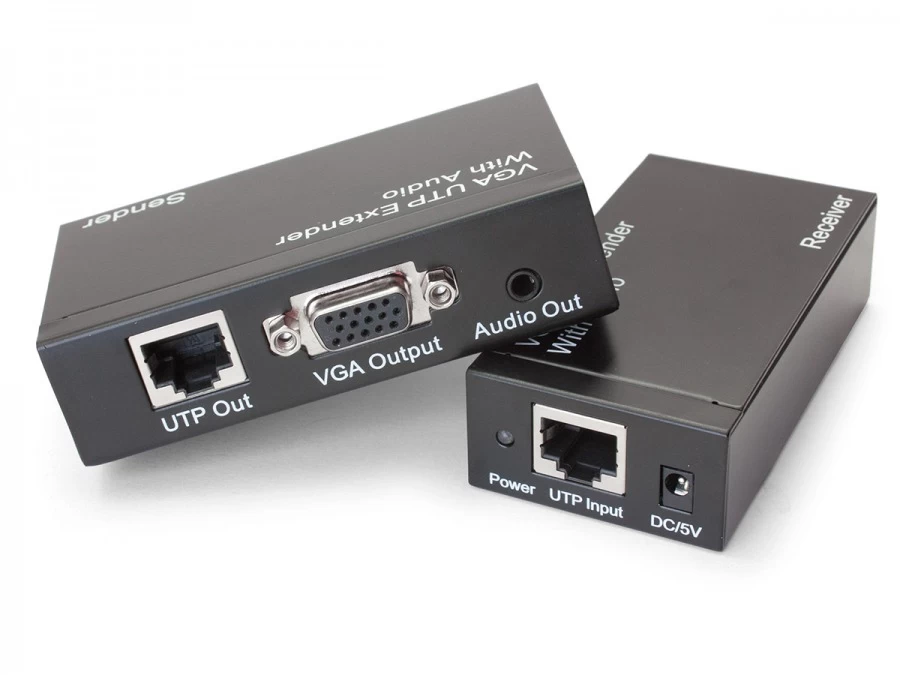

VGA 1×2 Splitter & Extender Over Ethernet (VGA Balun)
Original price was: $117.95.$82.57Current price is: $82.57.
- Quality Meets Affordability
- Efficient and effective customer service, online.
- 100% environmentally friendly material
- Safe and Secure Payments, Always
Duplicate and Extend VGA + Stereo Audio up to 300m the easy way – over Cat5!
This package includes both the VGA Balun Sender & Receiver, and their respective power packs. You will require VGA, Ethernet and 3.5mm Audio cables to suit your installation setup.
Running VGA more than about 15 or 20 metres usually leads to a trade-off in picture quality or resolution capability, but with a fully powered extender kit, you can have both local viewing and remote display running simultaneously up to 1920×1200 resolution. Audio is also included as a 3.5mm socket for remote transmission. Please note left and right channels are combined to a mono audio output.
Both the transmitter and receiver have their own Australian power packs, and the receiver also has Peak and Gain knobs (screwdriver required for adjustment) so you can dial in the best picture possible for the length of RJ45 UTP cable you’re using.
For VGA over a long distance, this is the way to go.
Transmission Range Examples:
• 640 x 480 (10MHz) – 300m
• 800 x 600 (30MHz) – 200m
• 1024 x 768 (60MHz) – 150m
• 1280 x 1024 (100MHz) – 100m
• 1920 x 1080 (138MHz) – 75m
Package Includes:

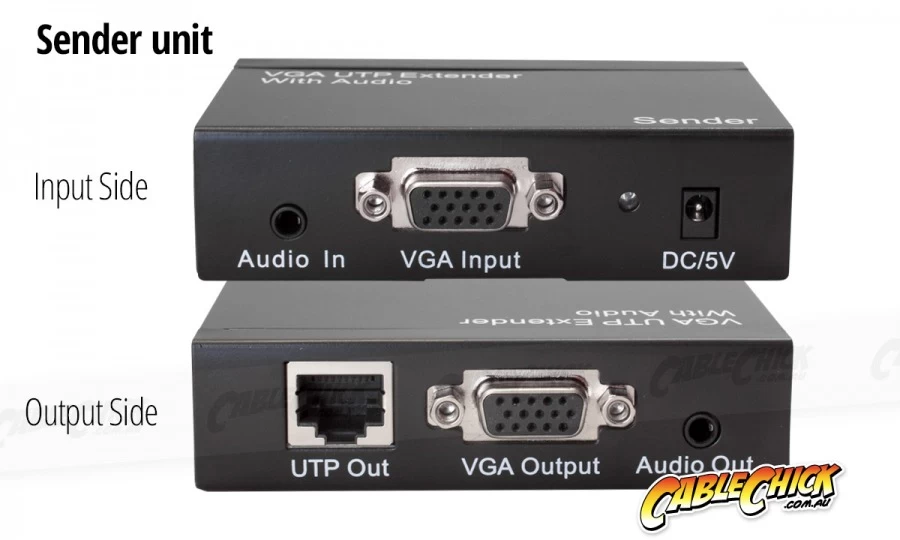

- VGA + 3.5mm Stereo to CAT5 Transmitter with Local Pass-Through

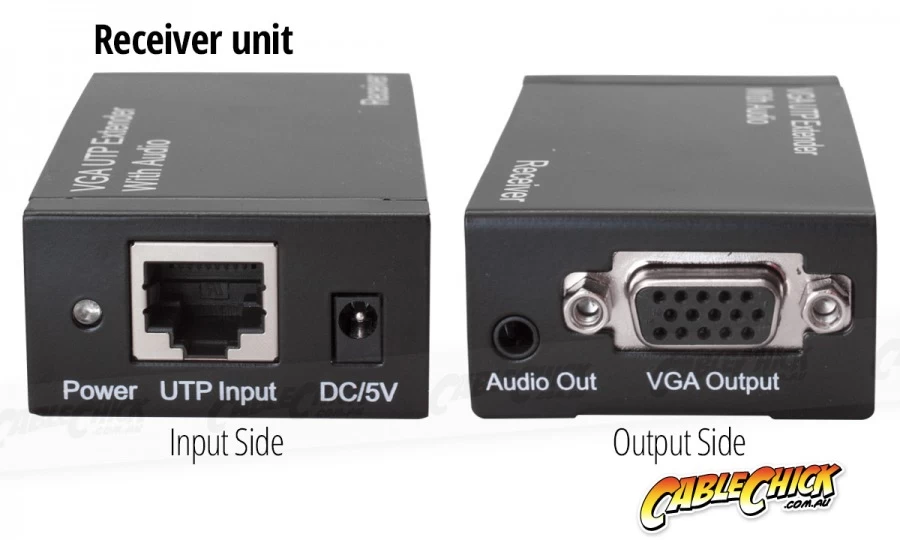

- CAT5 to VGA + 3.5mm Stereo Receiver
- 2x 5V DC Power adaptors for Sender and Receiver modules
- User Manual
- Colour: Black
- Note: UTP cable is not included.
Technical Features:
- 12 Months Cable Chick Warranty!
- 1×2 VGA Splitter and Extender over Ethernet
- Sender Dimensions: 90(L) x 60(W) x 25(H)mm
- Receiver Dimensions: 85(L) x 43(W) x 25(H)mm
- Supported Resolutions: 640X480, 800X600, 1024X768, 1280X720, 1280X768, 1280X960, 1280X1024, 1600X900, 1600X1200, 1920X1080, 1920X1200 (Image quality is dependant on resolution and distance travelled)
- Vertical Frequency Range: 60/75/85Hz
- Supported CAT5 Types: CAT5, CAT5e, CAT6, STP or UTP
- Requires:Â 2 x VGA Cables & 1 x CAT5 Ethernet Cable
- Note: Mono audio output only. Left and Right channels are combined.
Cable Chick Tip: This package does not ship with CAT5 cables, VGA cables or Stereo Audio cables. If you need them, please check out my CAT5, VGA and Stereo Audio categories right here at Cable Chick!
